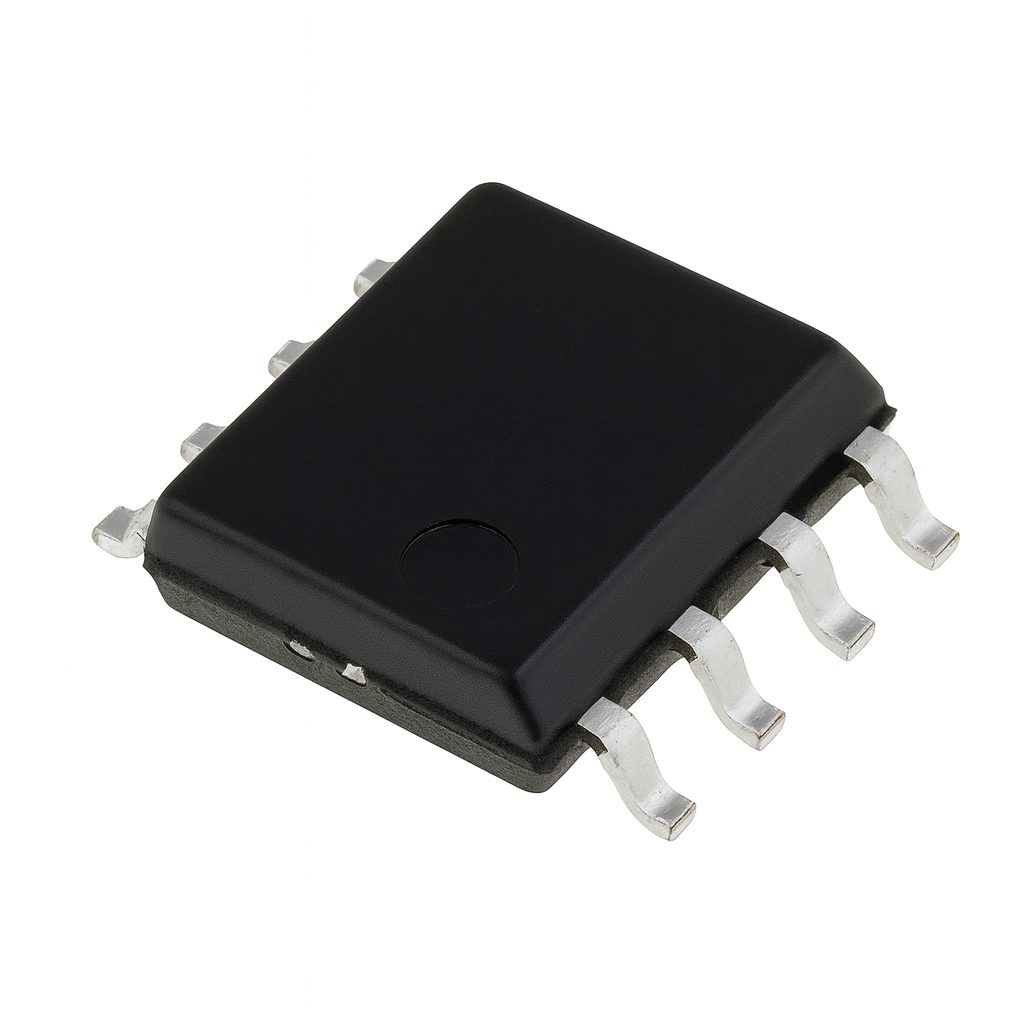

UC 3845 B SMD PWM Controller – PWM

UC3845B SMD PWM Controller – PWM with 50% Duty Cycle Limited

🔎 Note on product images
Images are illustrative and may differ from the actual product. This does not affect the technical or functional characteristics of the component. Some photographs may be generated by AI for representative purposes.

🔧 Professional description
The UC 3845 B is a current-mode PWM controller with duty cycle limitation of less than 50%, ideal for applications requiring high efficiency, precise control, and integrated protection. It is an excellent choice for flyback and forward converters and chargers with low design complexity.

🧰 Technical specifications
- Model: UC3845B
- Type: PWM current mode with cycle limitation
- UVLO: 7.6 V / 8.4 V
- Maximum duty cycle: 50%
- Frequency: Up to 500 kHz
- Encapsulation: SMD (SO-8)
- Output: Totem-pole 1 A
- Typical uses: SMPS, Flyback and Forward converters, auxiliary supplies

📄 View technical data sheet (PDF)
