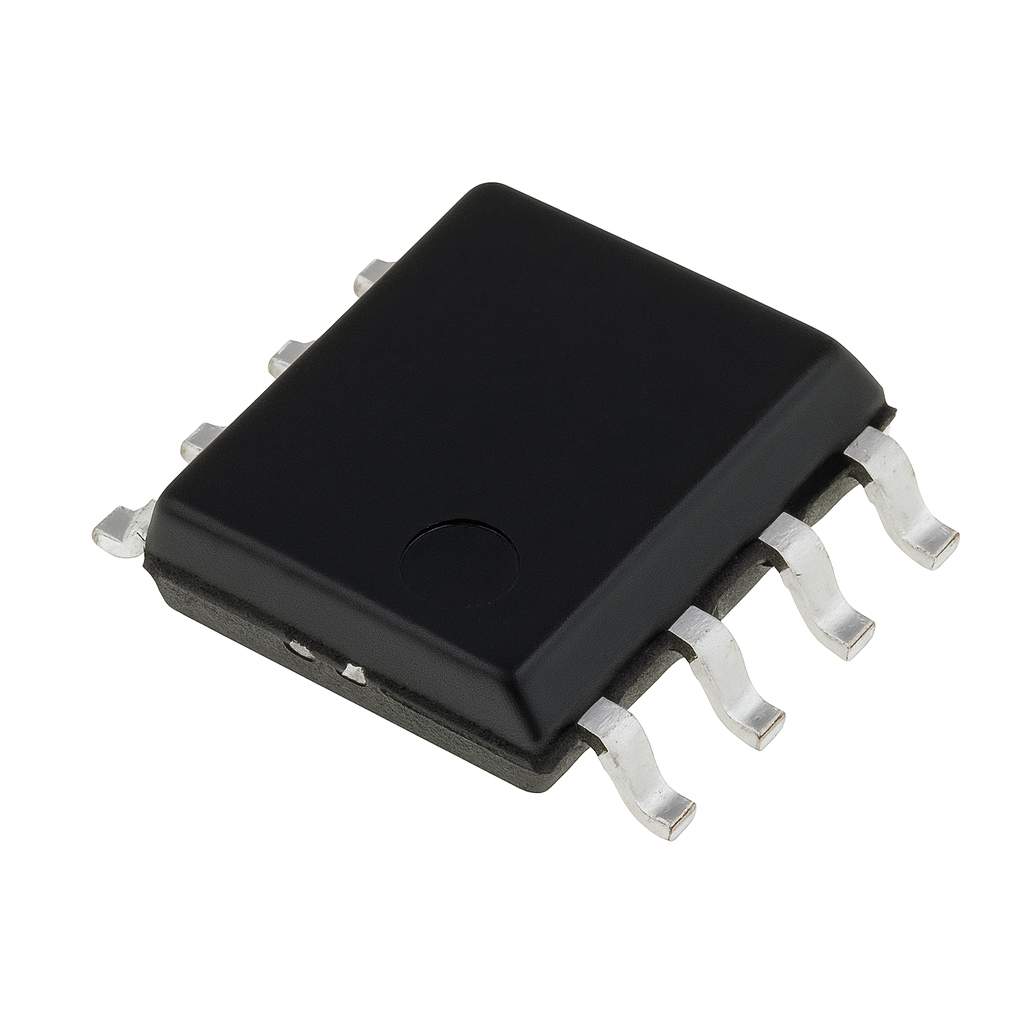

UC 3843 B SMD PWM Controller – High efficiency in SMPS supplies

🔎 Note on product images
Images are illustrative and may differ from the actual product. This does not affect the technical or functional characteristics of the component. Some photographs may be generated by AI for representative purposes.

✅ Product Description:
The UC3843B is a high-performance PWM (Pulse Width Modulation) controller in SMD packaging, ideal for applications in switched-mode power supplies (SMPS), battery chargers, inverters, and brushless motor controllers . Designed to deliver precise and efficient current-mode control, this IC enables duty cycles up to 100% with undervoltage protection and fast-start capabilities.

📦 Technical specifications – UC3843B

• Type: Current mode PWM controller
• Operating voltage: 7.6 V to 8.4 V (UVLO)
• Reference voltage: 5 V ±2%
• Oscillator frequency: Up to 500 kHz
• Starting current: < 0.5 mA
• Output: Totem-pole, capable of handling up to 1 A
• Encapsulation: SMD SO-8

💡 Ideal for:
✔️ Switching power supplies
✔️ Lithium or lead-acid SMPS chargers
✔️ Brushless motor controllers
✔️ DC-DC inverters and converters
✔️ Industrial and power electronics

📄 See official data sheet (PDF)

🚚 Shipping to all of Latin America and the US. 🛡️Working Guarantee
