UC 3842 B SMD PWM Controller – Current Mode Regulator for Switching Power Supplies

🔎 Note on product images

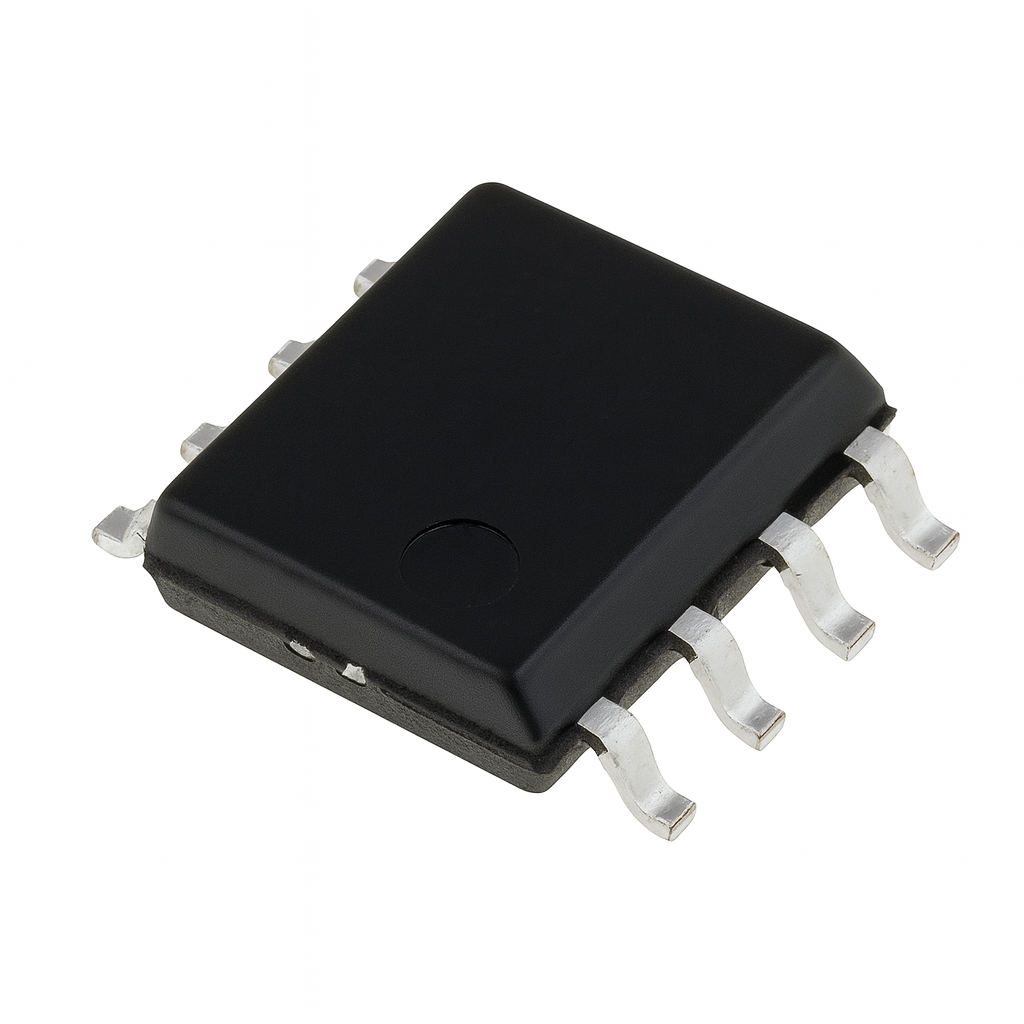

Images are illustrative and may differ from the actual product. This does not affect the technical or functional characteristics of the component. Some photographs may be generated by AI for representative purposes.

⚙️ Technical description:
The UC3842B is a high-performance PWM controller for switching power supplies, designed for current-mode applications. This SO-8 SMD packaged IC offers precise oscillation with guaranteed frequencies up to 250 kHz and reduced-current operation, ideal for applications where efficiency and precise control are critical. Its totem-pole output allows direct driving of power MOSFETs in flyback, forward, and buck converter topologies. 💡 Highlighted features:

• Current mode PWM control up to 500 kHz
• Oscillator with precise frequency and automatic compensation
• High current totem pole output (±1A peak)
• Low power consumption at start-up: < 0.5 mA
• Internal 5V regulated and stable reference
• Undervoltage lockout (UVLO) protection with hysteresis
• Ideal for SMPS power supply control, motor drivers and industrial applications.

📦 Technical specifications:
• Operating voltage (V _DC ): 12 V to 25 V
• Reference voltage: 5.00 V ±2%
• Encapsulation: SO-8 (SMD)
• Output current: ±1 A peak
• Oscillation frequency: Up to 500 kHz
• Operating temperature: 0°C to +70°C
• UVLO protection: ON at 16 V / OFF at 10 V
🔌 Common applications:

• Switching power supplies (SMPS) and chargers
• Isolated and non-isolated DC-DC sources
• Controllers for brushless motors
• Industrial electronics and power equipment.
• 📄 View technical data sheet (PDF)
