Toshiba 2SC5200 Transistor – NPN 230V 15A 150W TO-264 | High Fidelity and Power

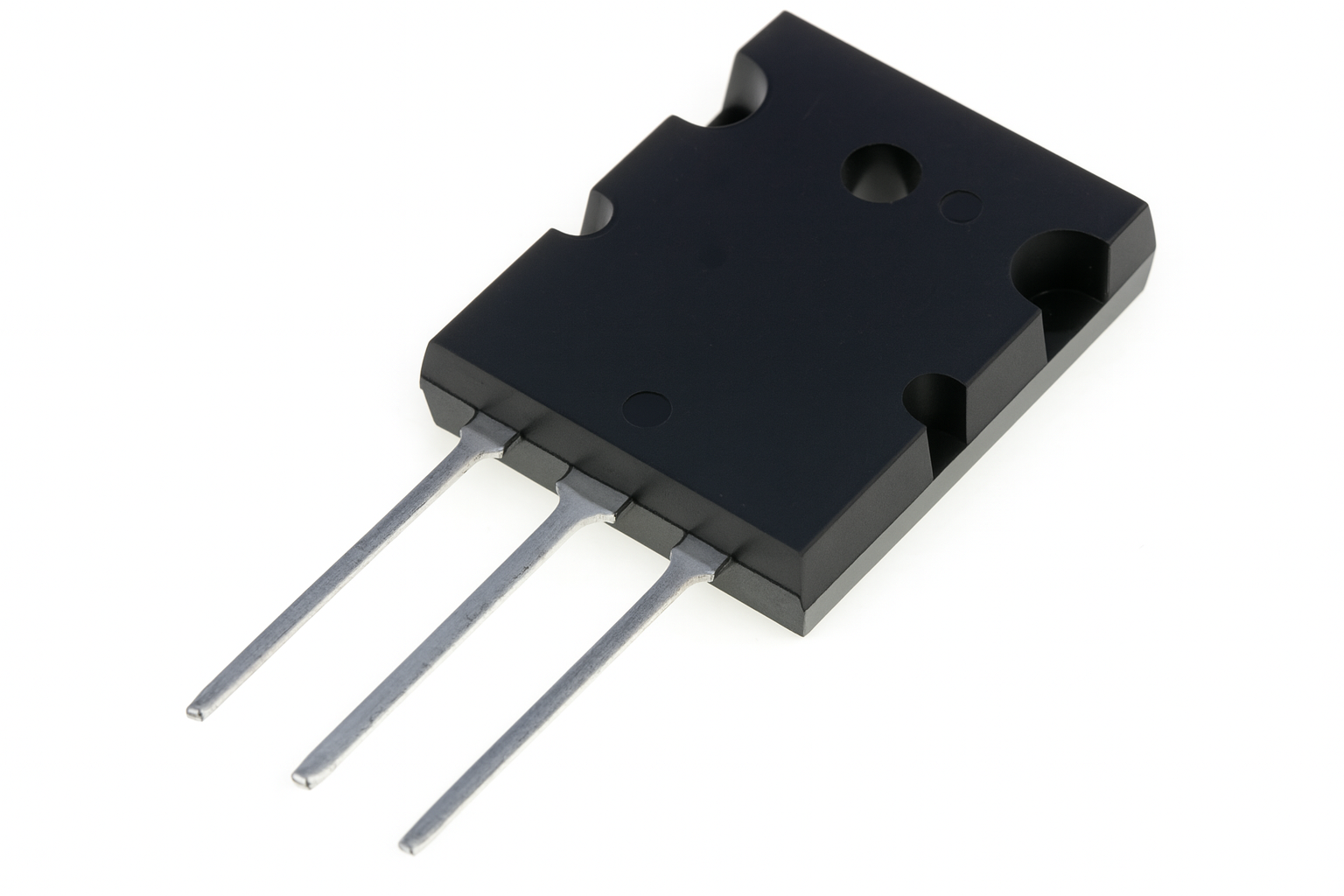

🔎 Note on product images
Images are illustrative and may differ from the actual product. This does not affect the technical or functional characteristics of the component. Some photographs may be generated by AI for representative purposes.

🔧 Technical specifications – Toshiba 2SC5200 (Original)

• Type: NPN Power Transistor (Silicon – Triple Diffusion)
• Model: 2SC5200
• Package: TO-264 (TO-3P)
• Collector-emitter voltage (V _CEO ): 230 V
• Collector current (IC ₎ : 15 A
• Maximum dissipation (PC ₎ : 150 W
• DC current gain (h _FE ): 55–160 @ 1 A
• Transition frequency (f _T ): 30 MHz
• Collector-emitter saturation voltage (V _CE(sat) ): max. 3 V @ 8 A
• Operating temperature range: −55°C to +150°C
• Complementary: 2SA1943

✅ Recommended apps

• Output stages in high-fidelity audio amplifiers
• Professional sound equipment
• Class AB power amplifiers
• Home and industrial audio systems up to 100W real.
