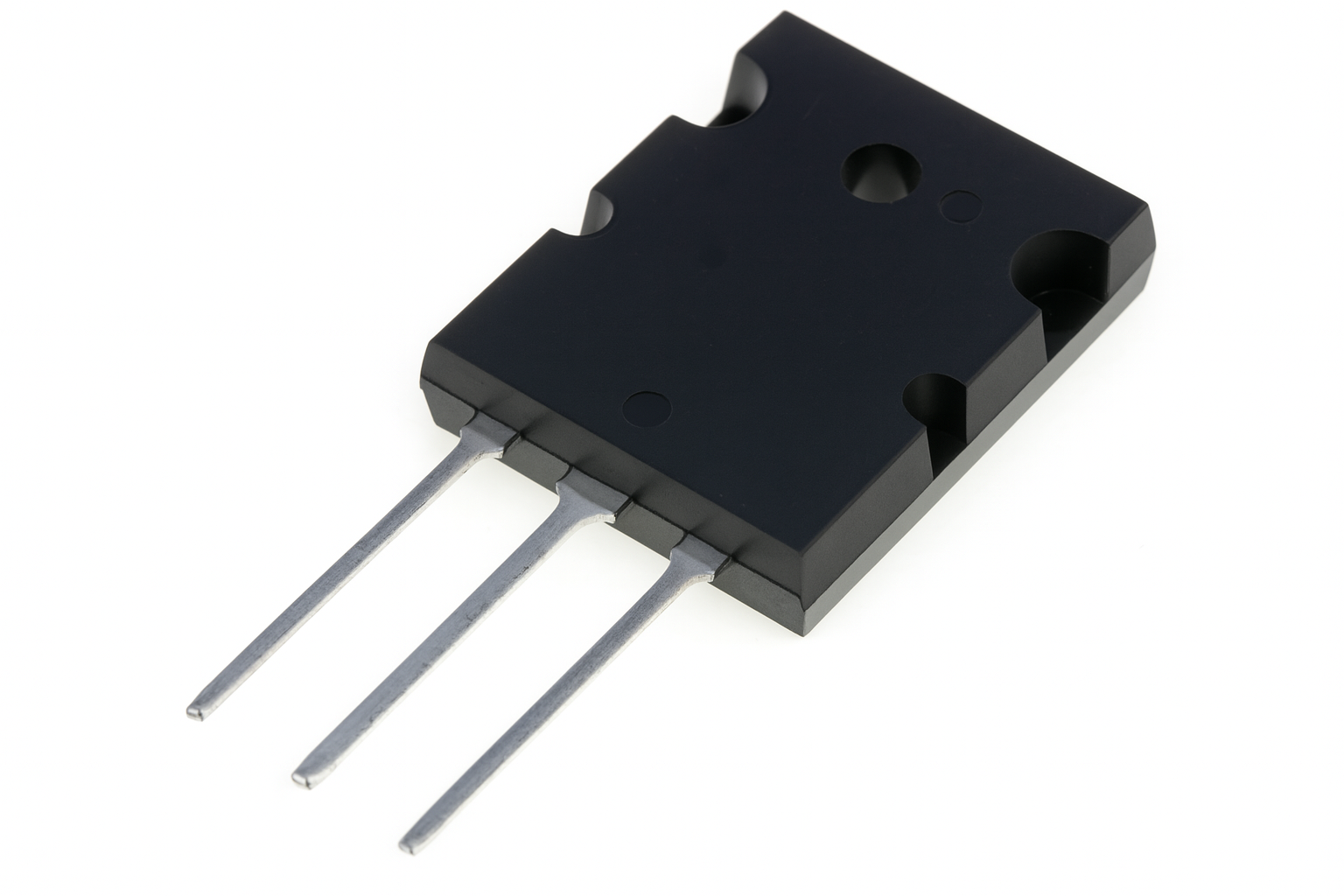

Toshiba 2SA1943 Transistor – PNP 250V 17A 150W TO-264 | High Fidelity and Power

🔎 Note on product images
Images are illustrative and may differ from the actual product. This does not affect the technical or functional characteristics of the component. Some photographs may be generated by AI for representative purposes.

🔧 Technical specifications – 2SA1943 Toshiba (Original)

• Type: PNP power transistor (Silicon – triple diffusion)
• Model: 2SA1943
• Package: TO-264
• Collector-emitter voltage (V _CEO ): −250 V
• Collector current (I _C ): −17 A
• Maximum dissipation ( _PC ): 150 W
• DC current gain (h _FE ): 55–160 @ 1 A
• Transition frequency (f _T ): 30 MHz
• Collector-emitter saturation voltage (V _CE(sat) ): max. −3.0 V @ 8 A
• Typical base-emitter voltage (V _BE ): −1.0 to −1.5 V @ 7 A
• Operating temperature range: −55°C to +150°C
• Complementary: 2SC5200

✅ Recommended apps

• High-fidelity (Hi-Fi) audio amplifiers
• Professional sound equipment
• Output stages in class AB amplifiers
• Audio systems up to 100 W real per channel
