QW3863 – IC PWM SMD Current Controller – SOP-8

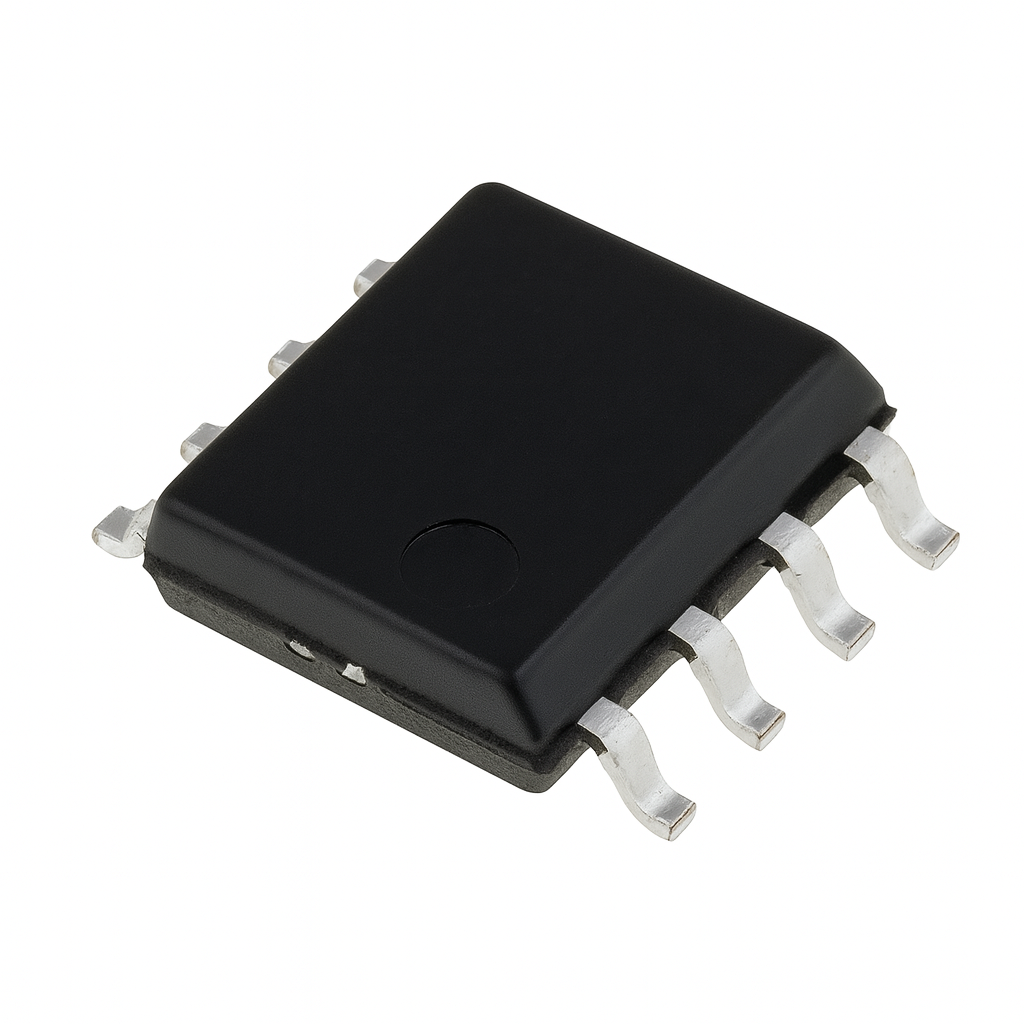

🔎 Note on product images
Images are illustrative and may differ from the actual product. This does not affect the technical or functional characteristics of the component. Some photographs may be generated by AI for representative purposes.

🔧 Technical specifications – QW3863

• Type: Current mode PWM controller
• Package: SOP-8 (8-pin SMD)
• Operating frequency: Up to 500 kHz
• Supply voltage: approximately 12 V – 25 V
• Output: Totem-pole for driving MOSFETs (up to 1 A)
• Reference output: 5 V – 50 mA
• Protection: Cycle-by-cycle current limit

🧩Distribution of pines:

1. COMP – Error Loop Compensation
2. VFB – Voltage Feedback
3. ISENSE – Current Detection
4. RT/CT – Frequency Settings
5. GND – Ground
6. OUTPUT – Control output for MOSFET
7. VCC – Power Supply
8. VREF – Internal 5V reference

⚡Ideal for:

• Switching power supplies (SMPS)
• Battery chargers
• DC-DC converters
• Inverter controllers
