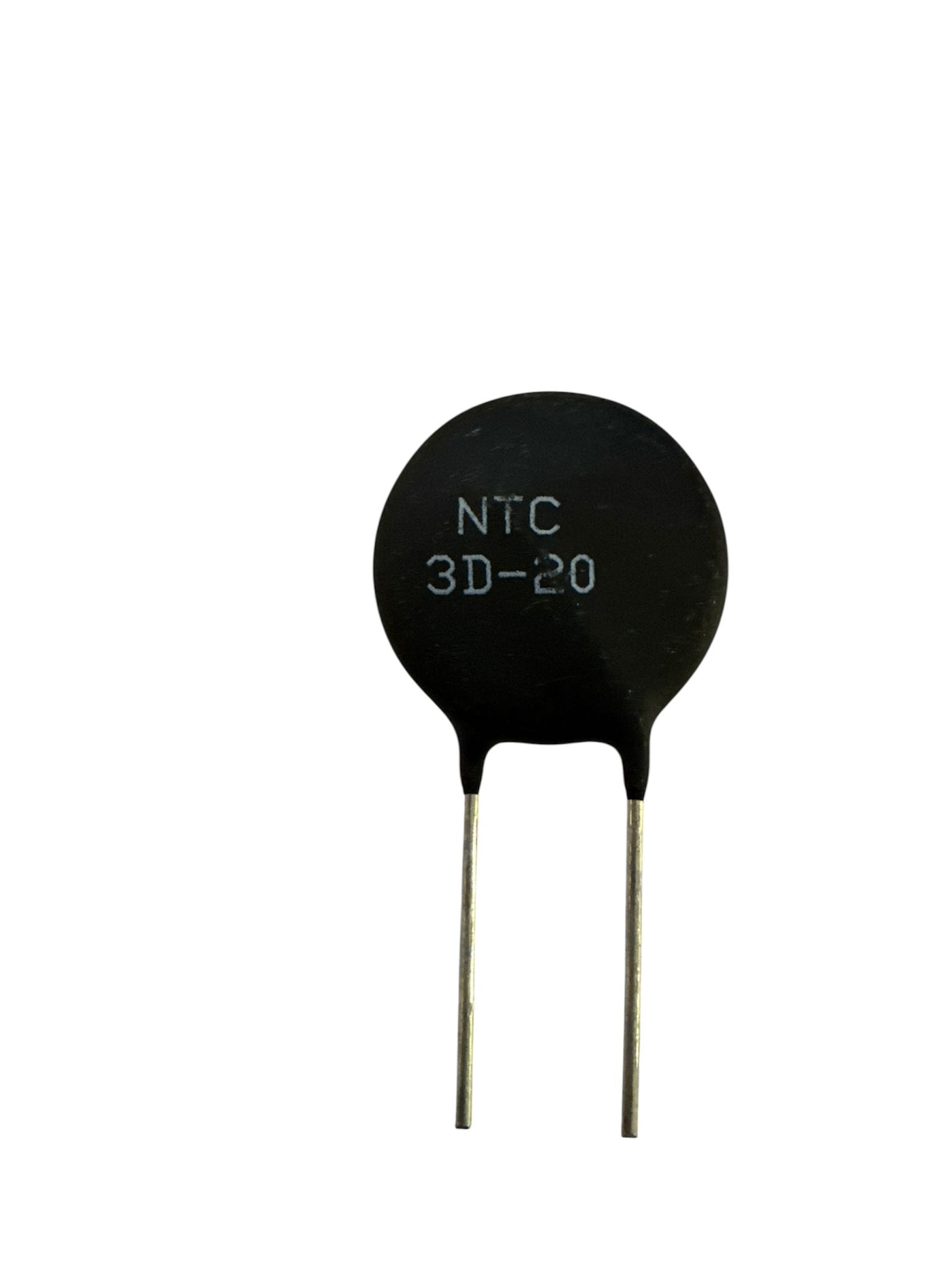

NTC 3D-20 Thermistor – 3 Ω / 20 mm – Inrush Current Limiter | High Thermal Resistance

🔎 Note on product images
Images are illustrative and may differ from the actual product. This does not affect the technical or functional characteristics of the component. Some photographs may be generated by AI for representative purposes.

🔧 Technical specifications – NTC 3D-20 thermistor

• Type: NTC (Negative Temperature Coefficient) Thermistor
• Model: 3D-20
• Nominal resistance: 3 Ω ±20% at 25 °C
• Maximum stable current: 8.5 A
• Residual resistance: 79 mΩ max.
• Thermal dissipation constant: 24 mW/°C
• Thermal time constant: 88 s
• Operating temperature range: -40 °C to +170 °C
• Disc diameter: 20 mm

⚡ Ideal for:

• High power switching supplies
• UPS, inverter and converter protection
• Inrush Current Limitation
• Soft start in motors and transformers
