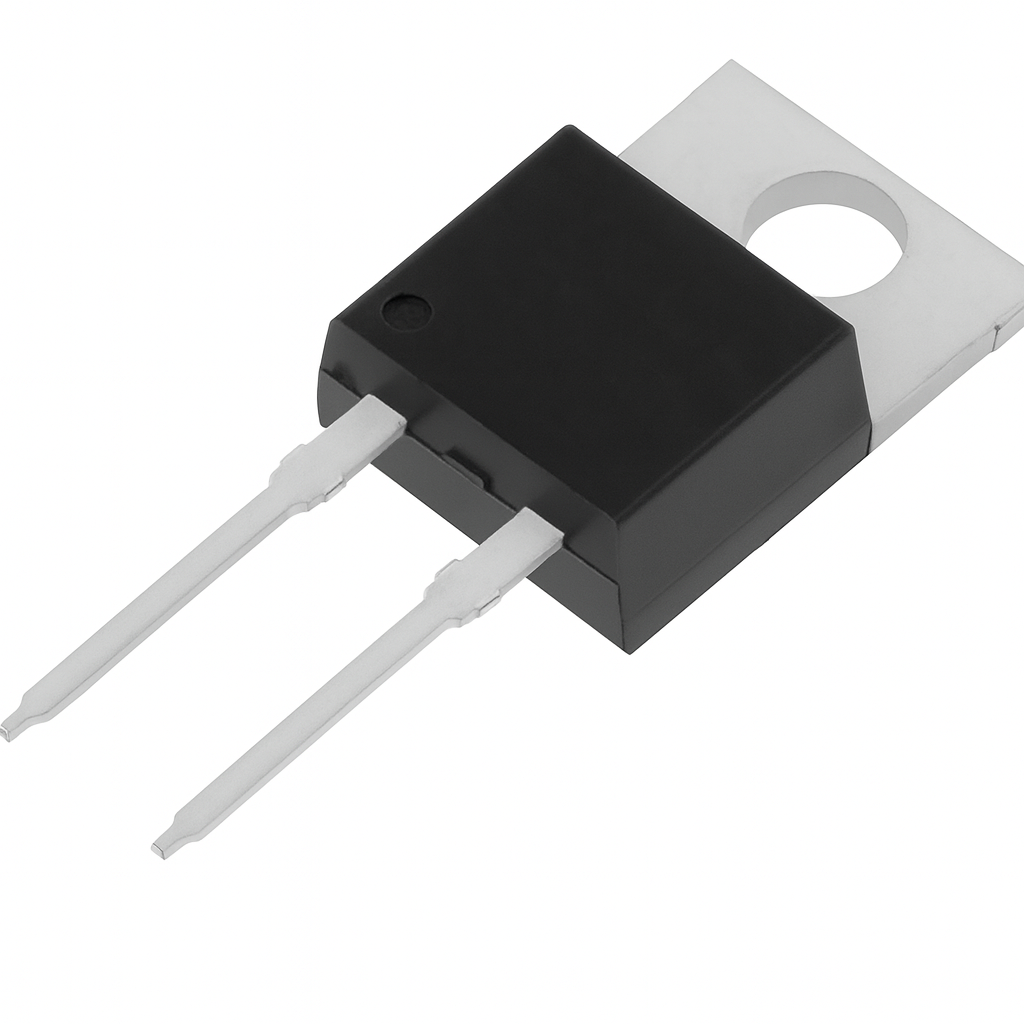

MUR1506-J – Super Fast Recovery Epitaxial Diode 600V 15A TO-220AC-J

🔎 Note on product images
Images are illustrative and may differ from the actual product. This does not affect the technical or functional characteristics of the component. Some photographs may be generated by AI for better representation.

🔧 Technical specifications - MUR1506-J

• Type: FRED Diode (Fast Recovery Epitaxial Diode)
• Repetitive blocking voltage ( _VRRM ): 600 V
• Average forward current (I _O ): 15 A
• Overload current (I _FSM ): 150 A (8.3 ms, half sine wave)
• Forward voltage (V _F ): 1.70 V max. @ 15A
• Reverse recovery time (Trr ₎ : 50 ns
• Package: TO-220AC-J
• Operating temperature range: -55 °C to +150 °C
• Construction: Super fast recovery single rectifier
• RoHS Compliance: Yes

✅ Ideal for

• SMPS switching power supplies
• Low voltage and high frequency inverters
• Polarity protection and freewheeling
• Power stages in industrial electronic systems.

📄 View technical data sheet (PDF)
