N-Channel MOSFET MDP1991 TO-220 | 100V 120A 5.9 mΩ – High power and efficiency

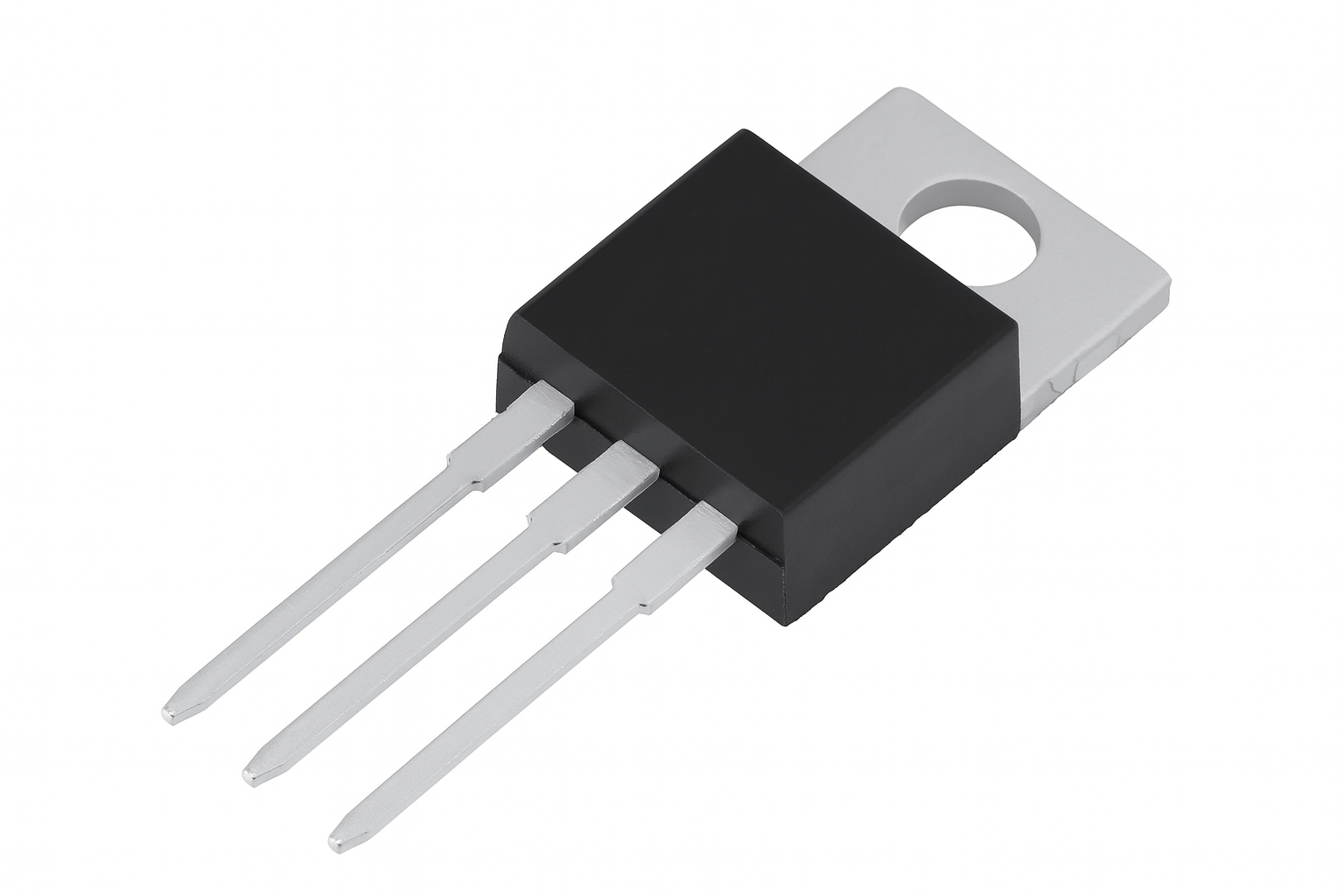

🔎 Note on product images
Images are illustrative and may differ from the actual product. This does not affect the technical or functional characteristics of the component. Some photographs may be generated by AI for better representation.

🔧 N-Channel MOSFET MDP1991 – High switching efficiency

The MDP1991 is a TO-220 packaged N-channel MOSFET, designed with advanced Trench technology by Magnachip. It offers low on-resistance ( R _DS(on) of only 5.9 mΩ ) and current handling up to 120 A , making it ideal for switching supplies, inverters, Class-D amplifiers, and electric vehicle BLDC controllers.

📦 Key technical specifications:

• Drain-Source Voltage (V _DSS ): 100 V
• Continuous current (ID ): 120 A (limited by encapsulation)
• Pulse current: 480 A
• Resistance ON (R _{DS on} 5.9 mΩ max. @V _GS = 10V
• Dissipated power: up to 223 W @ 25 °C
• Package: TO-220 (3 pins)
• Compartment door voltage: ±20 V
• Reverse recovery (trr): 73 ns
• Temperature range: -55 °C to +150 °C
• RoHS: Halogen-free

✅ Typical applications:

• Switching power supplies (SMPS)
• DC-AC Controllers and Inverters
• High power class D amplifiers.
• BLDC motor controllers (electric motorcycles, scooters, etc.)
• Energy conversion systems in electric vehicles.
• Industrial power equipment

📦 Presentation: Loose unit or tube of 50 pieces (TO-220)
📞 Have questions? Contact us via WhatsApp: +1 816 534 5845
🌎 Shipping to all of America and Europe | Performance Guarantee

📄 View technical data sheet (PDF)
