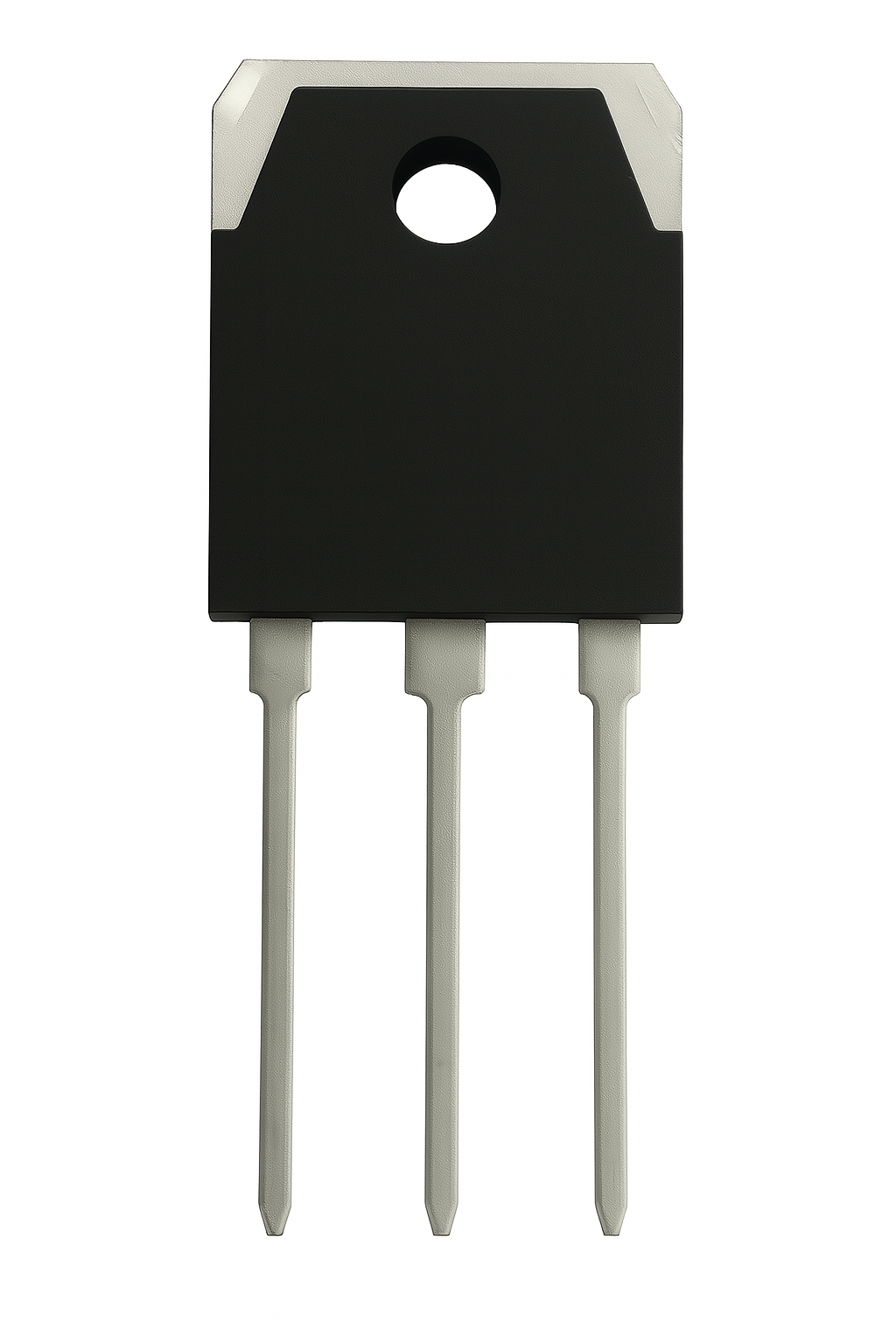

🔧 MOSFET FHA3773 – 300V / 40A / TO-3PN

🔎 Note on product images
Images are illustrative and may differ from the actual product. This does not affect the technical or functional characteristics of the component. Some photographs may be generated by AI for better representation.

🔧 MOSFET FHA3773 – 300V / 40A / TO-3PN
N-channel MOSFET transistor designed for high-power applications such as switching supplies, inverters, and power systems. Manufactured using a planar process and 100% verified in avalanche and thermal tests.

Technical specifications:
Type: N-Channel MOSFET
Model: FHA3773
Drain-source voltage (VDS): 300 V
Continuous drain current: 40 A @ 25 °C, 26 A @ 100 °C
Pulse current: 160 A
Gate-source voltage (VGS): ±30 V
RDS(on): 85 mΩ typical @ VGS = 10 V
Total gate charge (Qg): 76 nC
Input capacitance (Ciss): 3870 pF
Dissipated power: up to 310 W
Package: TO-3PN
Operating temperature: –55°C to +150°C
Reverse recovery time (rrT): 230 ns

📄 View technical data sheet (PDF)

✅ Ideal for: Switching power supplies, power inverters, solar systems, Class D audio, and energy storage.
