20n60 Infineon SPP20N60C3 | MOSFET N-Channel 600V 20.7A RDS(on) 0.19Ω TO-220

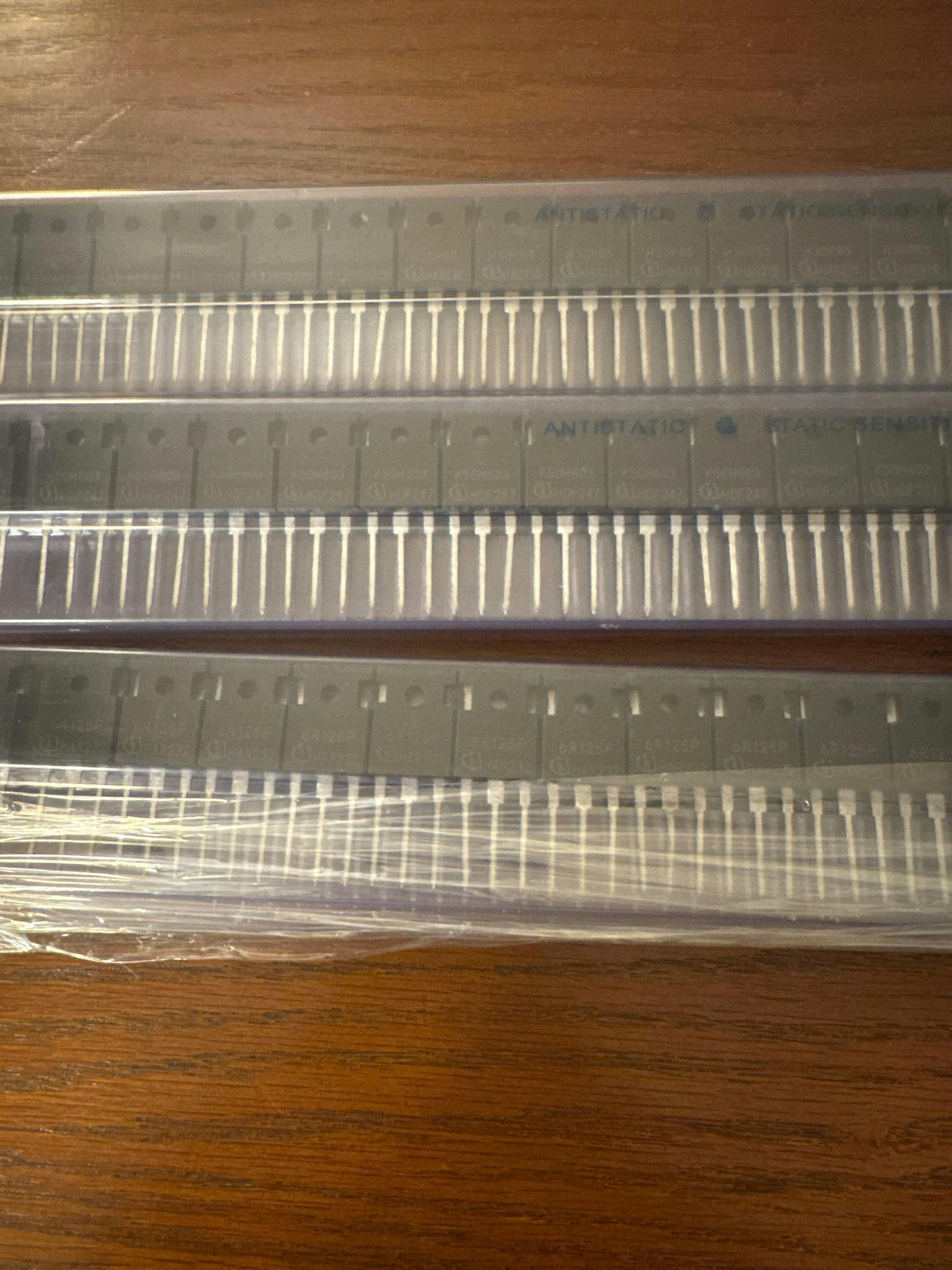

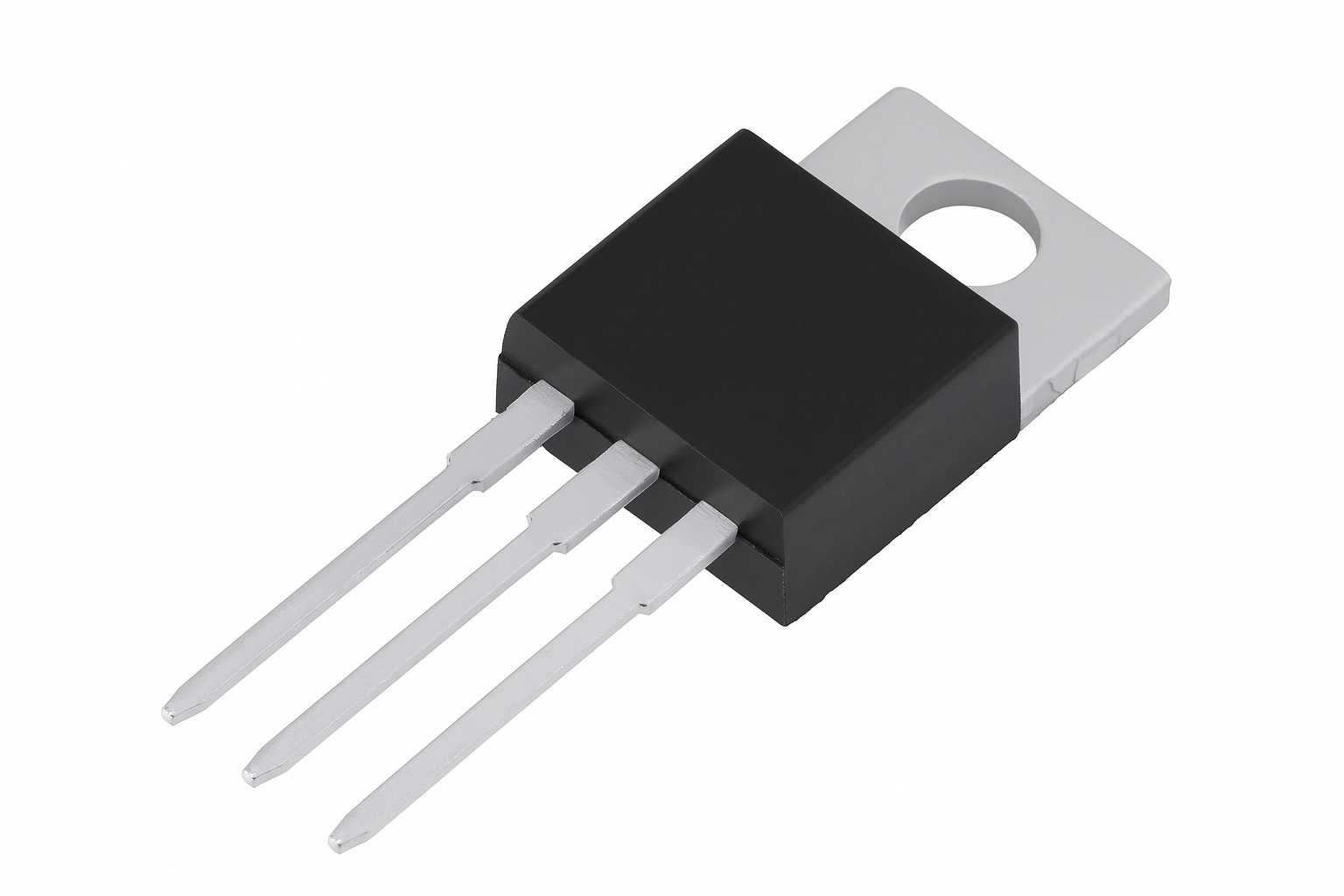

🔎 Note on product images
Images are illustrative and may differ from the actual product. This does not affect the technical or functional characteristics of the component. Some photographs may be generated by AI for representative purposes.

🔧 Technical specifications – MOSFET SPP20N60C3 (Infineon)

• Type: N-Channel MOSFET (CoolMOS™)
• Model: SPP20N60C3 or 20n60c3
• Package: TO-220
• Drain-source voltage (V _DS ): 600 V
• Continuous current ( _ID ): 20.7 A @ 25 °C
• Pulse current (I _D,puls ): 62.1 A
• R _DS(on) : 0.19 Ω max.
• maximum dv/dt: 50 V/ns
• Total gate charge (Q _g ): 114 nC
• Gate-source voltage (V _GS ): ±20 V DC, ±30 V AC
• Dissipated power (P _tot ): 208 W
• Operating temperature: -55°C to +150°C
• Switching frequency: High (ideal for PWM)

✅ Recommended apps

• Switching power supplies (SMPS)
• Solar inverters and UPS
• Motor controllers
• Industrial power systems
• Electronic ballasts and CFL lamps

🚚 Shipping to all of Latin America
✅ Performance and quality guarantee

📄 View technical data sheet (PDF)
