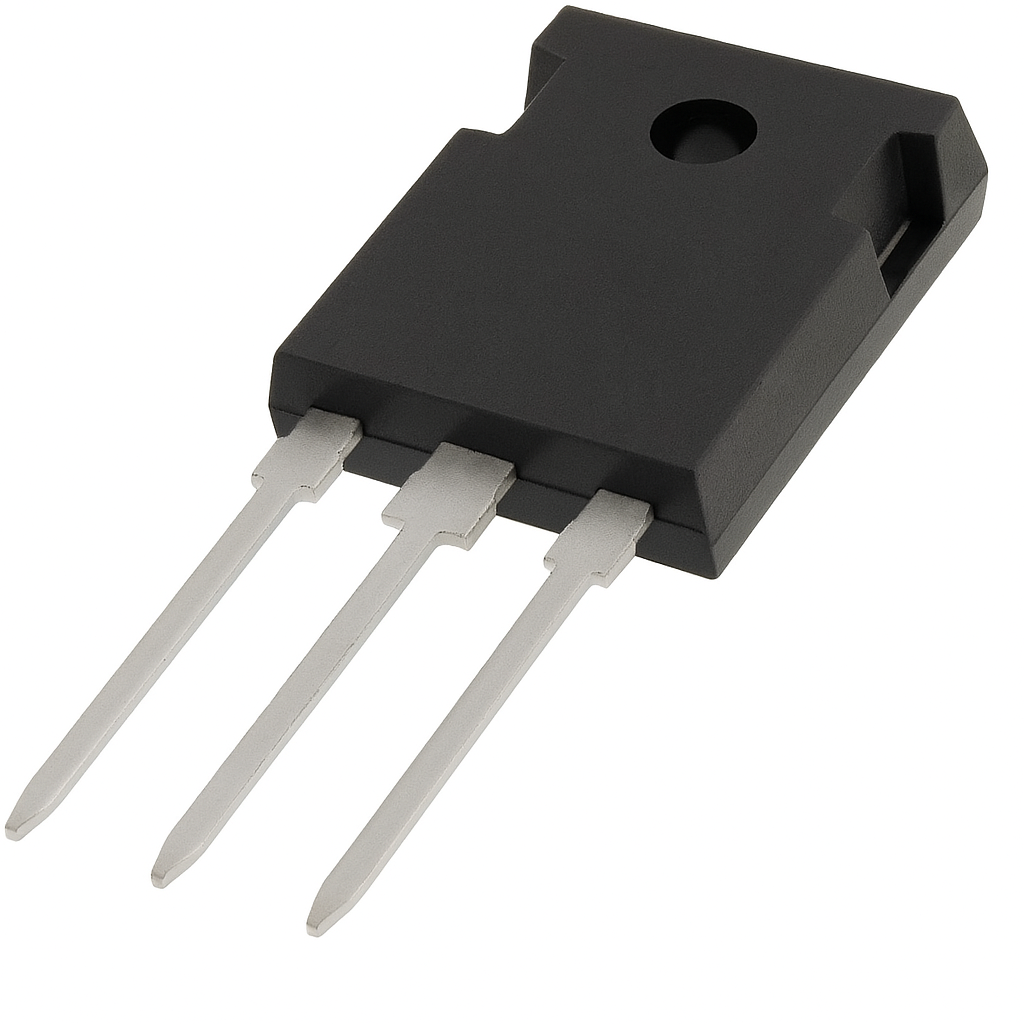

IGBT H30PR5 / IHW30N135R5 – 1350 V / 30–60 A TO-247 TrenchStop Infineon

🔎 Note on product images
Images are illustrative and may differ from the actual product. This does not affect the technical or functional characteristics of the component. Some photographs may be generated by AI for better representation.

🔧 IGBT H30PR5 (IHW30N135R5) – High efficiency for resonant switching

IGBT with integrated monolithic diode, designed for soft switching in applications such as induction cookers, high-frequency inverters, and resonant power supplies. Uses Infineon's TrenchStop™ technology to minimize losses and EMI.

📐 Technical specifications:

• Collector-emitter voltage (Vces): 1350 V
• Collector current (Ic): 30 A continuous, up to 60 A pulsed
• Non-repetitive peak current: 200 A
• Gate-emitter voltage: ±20 V (max. ±25 V transient)
• Voltage drop Vce(sat): 1.65 V @ 30 A (25 °C)
• Gate charge Qg: 235 nC
• Dissipated power: up to 330 W
• Encapsulation: TO-247
• Operating range: -40°C to +175°C

📄 View technical data sheet (PDF) 📄

✅ Tested and guaranteed by TKOMPONGO
📦 Delivered new, in an antistatic bag
